Superior DRL4072 72" Linear Direct Vent Gas Fireplace With Electronic Ignition
Superior DRL4072 72" Linear Direct Vent Gas Fireplace With Electronic Ignition
SKU: SKU: DRL4072TEN
Authorized Superior Dealer
Manufacturer's Warranty Included
Couldn't load pickup availability
The Superior DRL4072 72 Inch Linear Direct Vent Gas Fireplace With Electronic Ignition is designed to make a bold architectural statement while delivering reliable heating performance and contemporary style. With its expansive 72-inch linear configuration, this fireplace creates a dramatic focal point for large living rooms, great rooms, and custom residential spaces. The clean-face design with integrated tile stops allows for a seamless built-in appearance, while reflective black crushed glass media and an optional reflective glass liner enhance the depth and beauty of the flame presentation.
Engineered for convenience and installation flexibility, the Superior DRL4072 features electronic ignition with battery backup, ensuring continued operation during power outages. Available for natural gas operation and field-convertible to propane, this fireplace delivers up to 45,000 BTUs on natural gas and up to 43,000 BTUs on propane. An optional HeatFlo™ kit helps redirect heat away from heat-sensitive wall décor and electronics, making it easier to integrate the fireplace into modern entertainment wall designs. Homeowners can also choose an optional indoor see-through conversion kit to create a unique multi-room viewing experience.
Built with ceramic glass for enhanced heat transfer and a protective screen for added safety, the DRL4072 is designed for long-lasting performance and everyday reliability. Optional blower and multi-function remote control accessories provide additional comfort and convenience, while compatibility with 6DVL rigid direct vent components supports efficient venting. Backed by a 20-year limited warranty, the Superior DRL4072 offers an impressive combination of contemporary design, customization options, and dependable heating capability.
Included
- Fireplace Unit
- Literature Kit (Manuals & Guide)
- Four (4), 5 lb. bags of Reflective Black Glass Media
- 15 feet of two Conductor Wire
- Four (4), AA Batteries
- One (1), Fireboard Top
- One (1), Fireboard Bottom
- Two (2), Fireboard Sides
- Self Drill Bugle Drywall Screws
- One (1) Standoff Assembly
- One (1) Heat Shield
- Twelve (12) #10 Hex Head Screws
Optional Accessories
- See-Through Conversion Kit
- HeatFlo Kit and Extension
- Trim Kit
- Liner Kit
- Additional Glass Media
- River Rock
- Rock Media Kit
- Driftwood Log Set
- Remote Kit
- Blower Kit
- Touch Up Paint
- Gas Conversion Kit
Features
- Available in 48″, 60”, 72″ and 84″ linear configured models

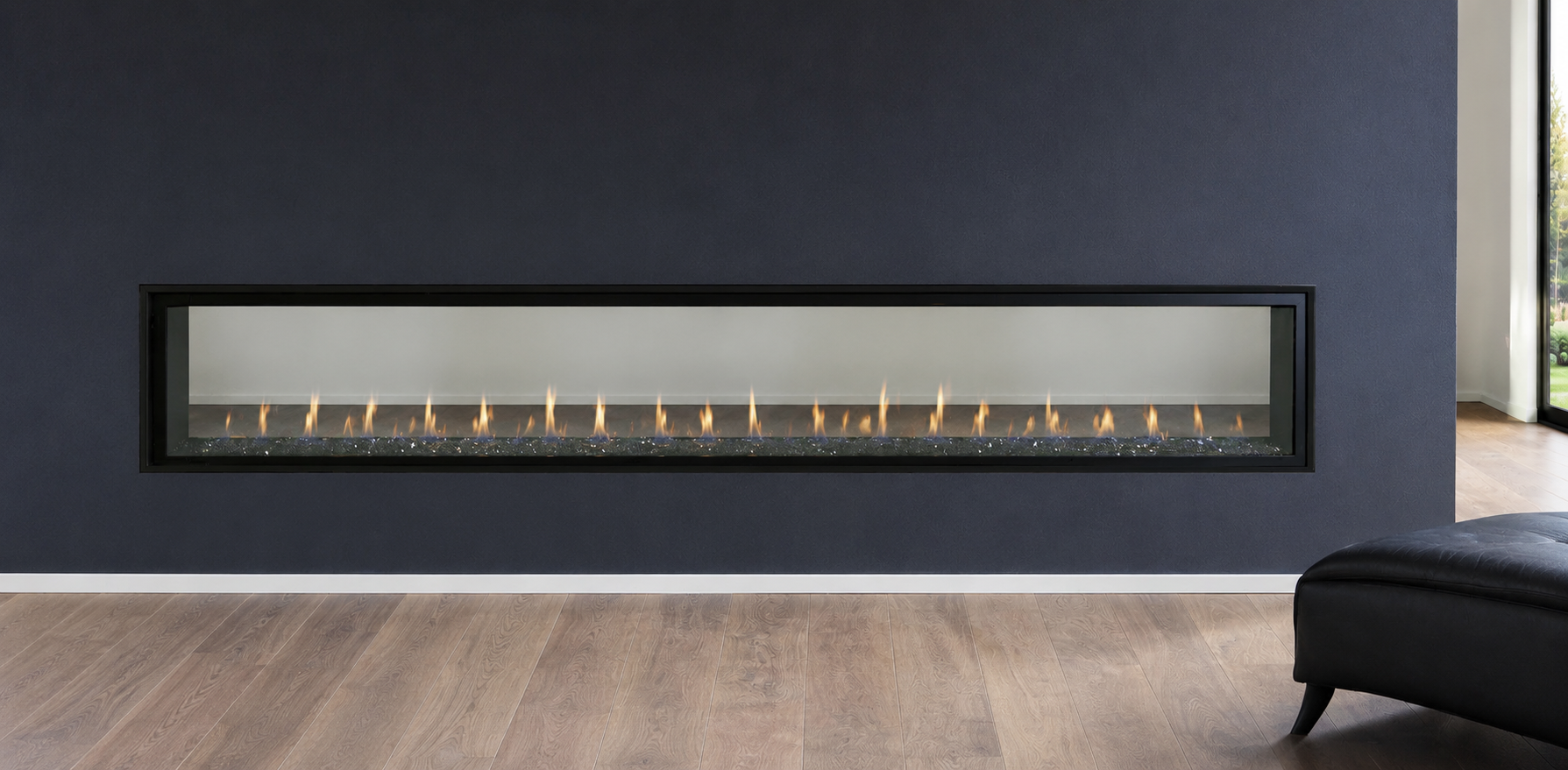

- Indoor see-through conversion kit available to allow viewing from two living spaces
- HeatFlo™ kit option allows heat to be directed above heat sensitive wall hangings
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Clean-face design with integrated tile stops for easy finishing
- Ceramic glass for optimum heat transfer and a protective screen*
- Black painted interior standard with a reflective glass liner available
- Reflective black crushed glass media included with several optional colors available to customize the look
- Optional blower and hand held multi-function remote control available**
- 20-year limited warranty
*All applicable models comply with ANSI Z21.88 barrier requirements.
**Blower use is not compatible with a see-through application.
Venting Notes
- Uses 6" / 9" 6DVL Rigid Direct-Vent Components
Specifications
| Brand |
Superior Fireplaces |
| Number |
F4390 |
| Model Number |
DRL4072TEN |
| Fuel Type | Natural Gas Liquid Propane using Conversion Kit |
| Product Type |
Direct Vent Gas Fireplace |
| Framing Width |
86-1/4" |
| Framing Height |
48-1/2" |
| Framing Depth |
19-1/2" 18-1/2" (See Through) |
| BTU | 45,000-31,500 (NG) 43,000-32,250 (LP-field converted) |
| Design Style |
Contemporary |
| View Style |
Front-View |
| Controls | Remote Control |
| Agency Listing | Built to ANSI Z21.88 and CSA 2.33 CAN/CGA 2.17 standards. PFS report F11-26 |
| AFUE* | 57.0% (NG) 57.8% (LP-field converted) |
| P4** | 55.0% (NG) 55.0% (LP-field converted) |
*AFUE is a measurement of the US Department of Energy
** P4 (EnerGuide) is a measurement of the Canadian Office of Energy Efficiency.
Product Dimensions
Warranty
 ttps://cdn.shopify.com/s/files/1/0686/3156/0499/files/20-Years-Warranty.jpg?v=1681616895 |
Innovative Hearth Products ("IHP") 20-Year Limited Warranty warrants your Superior® Brand gas fireplace, Stove, or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. |
