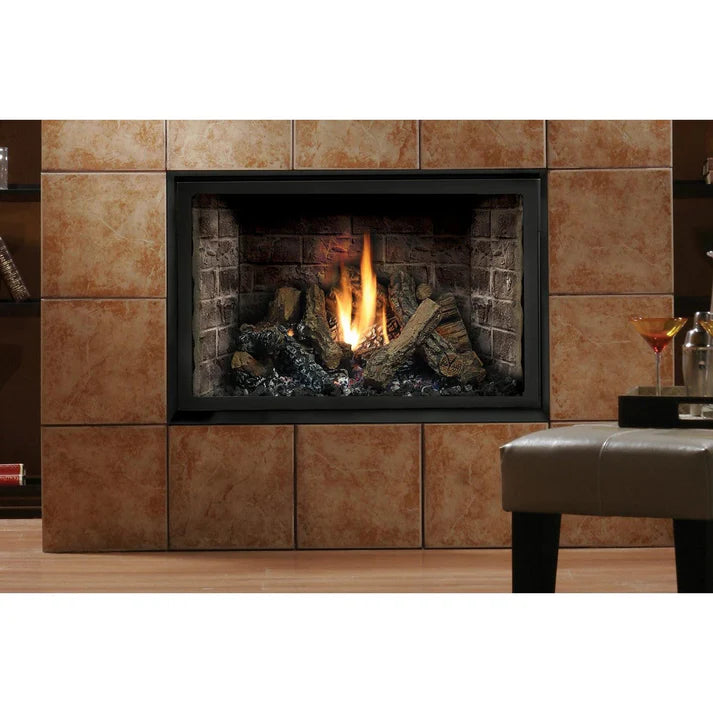

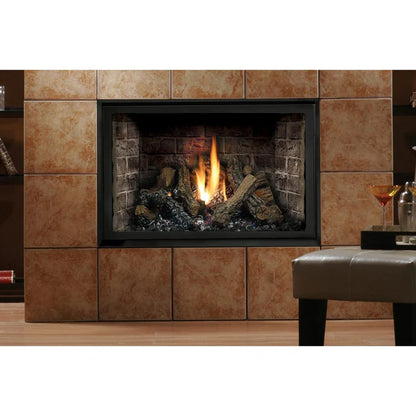

Kingsman 42" Natural Gas Direct Vent Fireplace Zero Clearance Millivolt Control
Kingsman 42" Natural Gas Direct Vent Fireplace Zero Clearance Millivolt Control
SKU: SKU: HBZDV4228N
Authorized Kingsman Dealer
Manufacturer's Warranty Included
Couldn't load pickup availability
Need Help? We Are Available!
The Kingsman 42" Direct Vent Fireplace is built to make your space more comfortable and inviting. With realistic flames behind tempered glass, it creates a warm atmosphere that helps you relax and enjoy your evenings.
The fully sealed combustion system and adjustable flame controls give you steady comfort and a modern look that fits any home. You get the warmth and style you want, without the mess or maintenance of a traditional fireplace.
Every detail is designed for safety and reliability, from the removable safety barrier screen to the flame-sensing system. The Kingsman fireplace gives you dependable warmth and a look that fits your home, so you can enjoy comfort every day.
What's Included :
- HBZDV4228 Gas Fireplace
- Dual Burner
- SIT Valve with Hi/Lo Adjustment
- Wall Switch
- 4/7" Sloped Top Flue
- Ceramic Glass
- Safety Screen
Not Included (Sold Separately)
- Log Set (Required)
- Designer Clean View Kit (Required)
- Black Grill Kit (Required)
- Black Surround
- Refractory Fiber Brick Liner
- Porcelain Reflective Panel Liner
- Fan Kit With Variable Speed
- Log Bits - Small Six Piece Kit
- Gas Conversion Kit
- Thermostats and Remote Controls
Features:
- Safety Screen Barrier
- Fully sealed combustion chamber
- Includes removable safety barrier screen
- Dual burner with Realistic Flame Pattern
- Tempered glass front radiates heat to the room
- Able to be configured as a clean face or louvered model
- Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment
- A flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if pilot is not sensed
Product Specification :
| Model | HBZDV4228N |
| Fuel | Natural Gas |
| Gas Control | Millivolt |
| Flue | Top |
| Input Max. | 28,000 BTU |
| Input Min. | 20,000 BTU |
| FE (p.4.1-02)% | 68.04% / 70.16% |
| Venting | 4/7" Flex or 4/6 5/8" Hard Pipe |
| Glass Type | Ceramic |
| Certification | Heater |
| Gas Supply Pressure |
| Minimum | 5.5" |
| Normal | 7" |
| Maximum | 9" |
| Manifold Pressure High | 3.5 IN. W.C./.87 KPa |
| Manifold Pressure Low | 1.6 IN. W.C./.40 KPa |
Dimensions :
| Actual Width (Louvers) | 42" |
| Actual Height (Louvers) | 37" |
| Actual Depth (Louvers) | 16" |
| Actual Width (CVCK) | 42" |
| Actual Height (CVCK) | 37" |
| Actual Depth (CVCK) | 19" |
| Viewing Area Width | 33" |
| Viewing Area Height | 20" |

Warranty :
