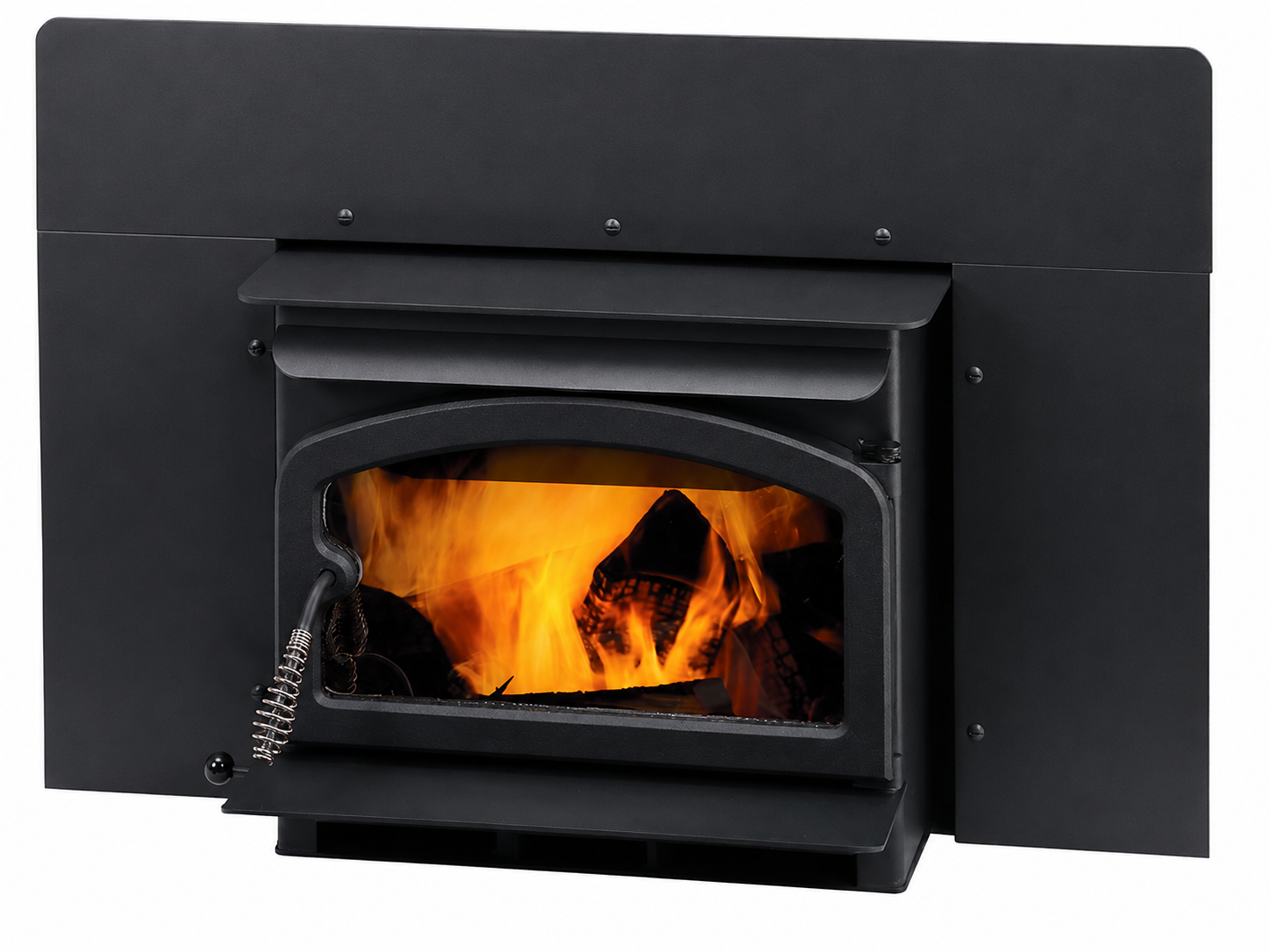

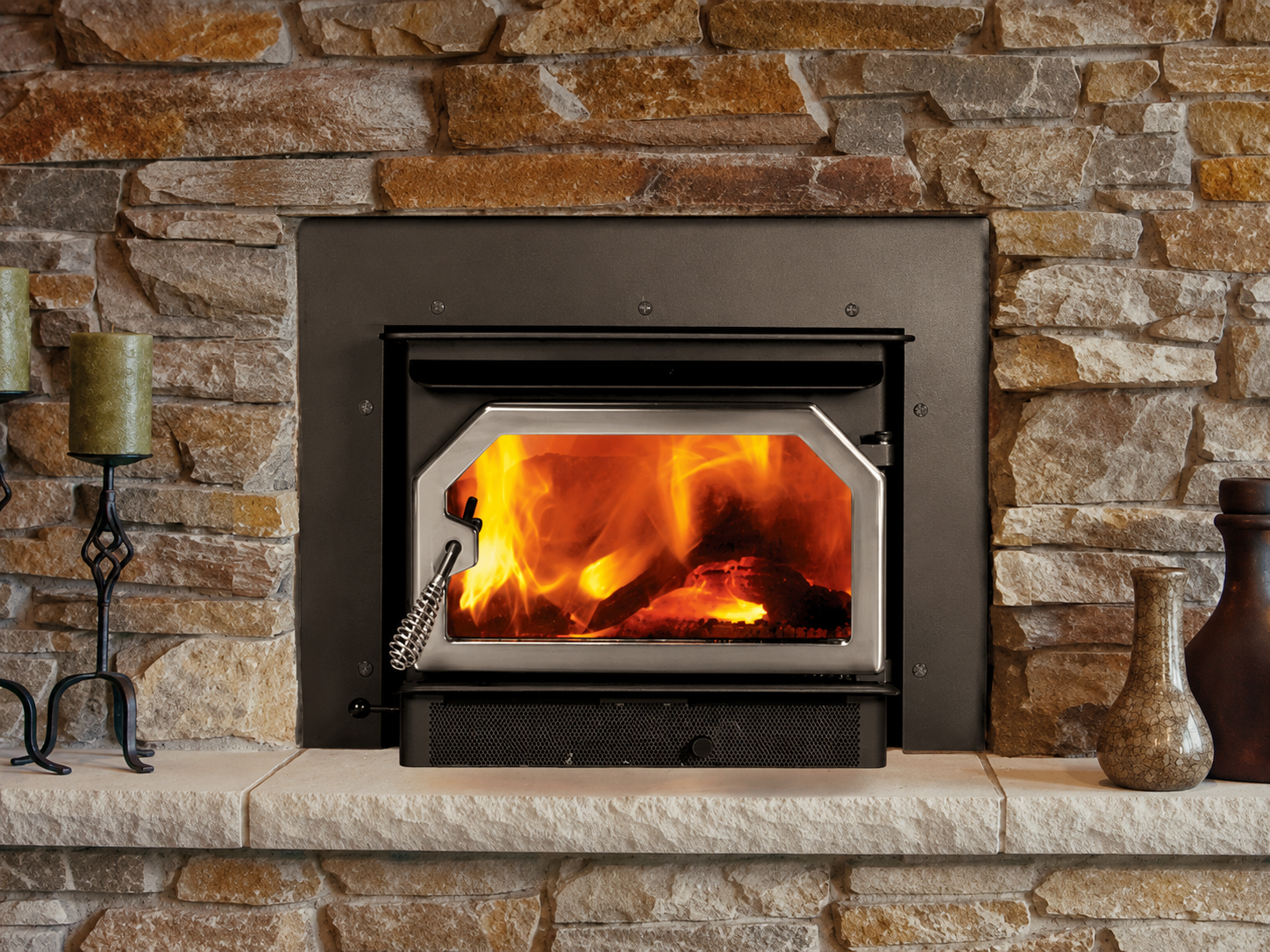

IronStrike C160 Striker 160 GL EPA Certified Wood Fireplace Insert

The IronStrike C160 Striker 160 GL Wood Fireplace Insert is a compact, high-efficiency heating solution designed to convert an existing masonry fireplace into a dependable source of warmth and comfort. Featuring a 1.6 cubic foot firebox that accommodates logs up to 18 inches long, this EPA-certified wood-burning insert produces up to 55,600 BTUs of heat and can effectively warm spaces ranging from 600 to 1,300 square feet. Its compact design makes it an excellent choice for smaller living areas, cabins, and supplemental home heating applications while still delivering the beauty and ambiance of a real wood fire.

Built for efficiency and long-lasting performance, the Striker 160 GL features precision-cut heavy-gauge steel construction and a high-density firebrick-lined firebox that retains heat longer for improved heating efficiency. The ceramic glass viewing window provides excellent heat transfer while showcasing the flames, and the integrated air wash system helps keep the glass clean for a clearer view of the fire with less maintenance. Convenient one-touch air control makes adjusting burn rates simple, allowing homeowners to maintain comfortable temperatures with ease.

The IronStrike C160 offers flexible customization options, including a choice of surround panels to properly finish the fireplace opening and optional brushed nickel or nickel decorative door faceplates to match your décor. An optional 160 CFM variable-speed blower can be added to help distribute heat more efficiently throughout the room. EPA-certified and Washington State-approved for clean-burning operation, the Striker 160 GL delivers reliable performance, efficient heating, and classic wood-burning appeal backed by a Limited Lifetime Warranty.

Included

• Striker C160 Wood Burning Fireplace Insert
• Door
• Ceramic glass
• Interior brick and baffle
• Air wash system
• 6" flue outlet

Required Accessories

• Surround Panel


Optional Accessories

• Surround Trim
• Faceplate
• Blower

Features

• Compact 1.6 cubic foot firebox interior accepts up to 18” logs.
• 55,600 BTU’s/hour and heats up to 600 – 1,300 square feet.
• Integrated air wash system helps keep the glass clean during use for an improved view of the fire.
• Ceramic glass for extra strength and optimum heat transfer.
• Unique, integral air wash system keeps the glass clean and clear for a wide-open view of the fire.
• Precision-cut, heavy-gauge steel provides dependable, long-lasting operation.
• High-density firebrick retains heat longer, resulting in increased efficiency.
• One-touch control ensures easy operation and comfort.
• Choice of surround panels to cover the surrounding fireplace opening (1-required).

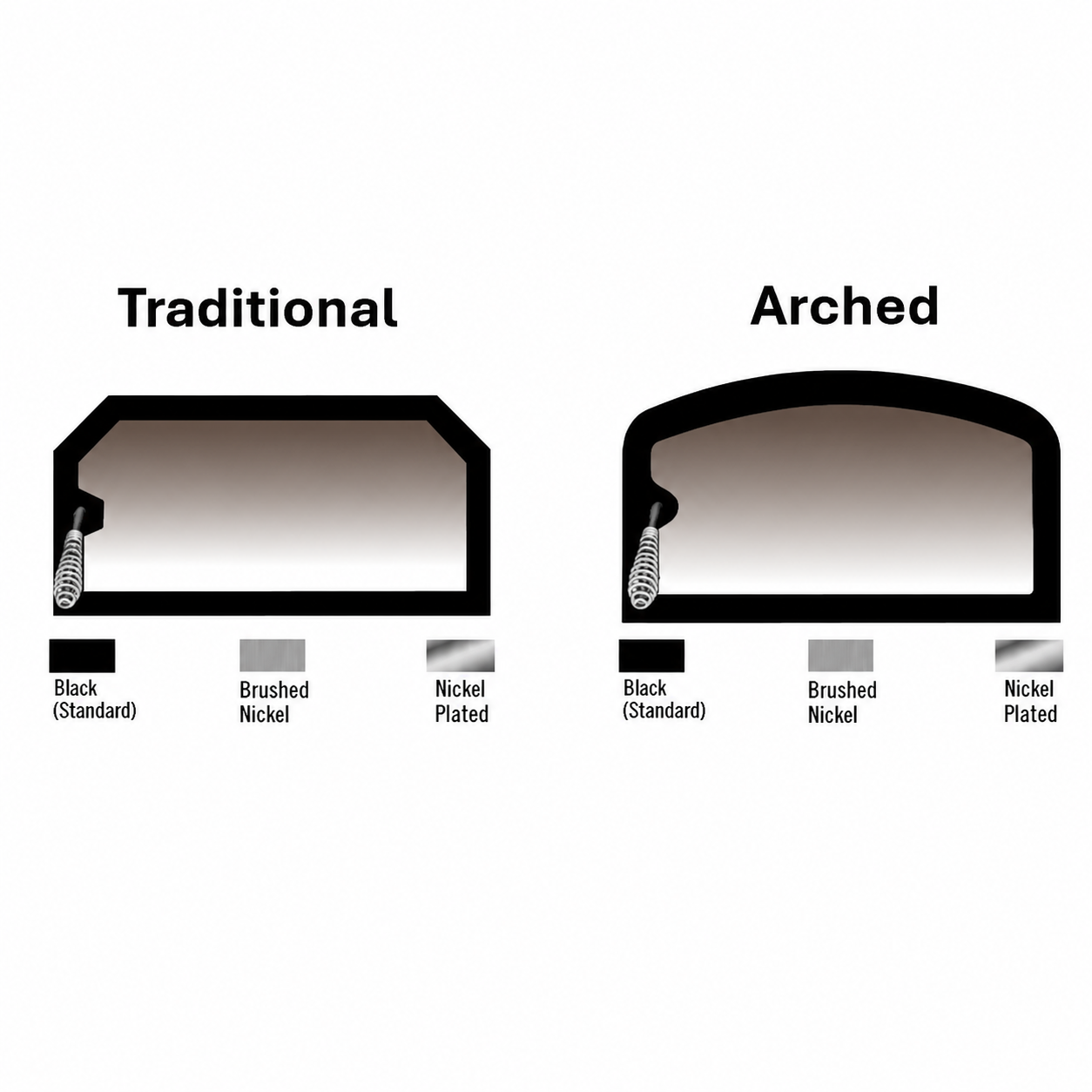

• Optional decorative door faceplates in Brushed Nickel or Nickel allow customization to your style.
• Optional 160-CFM variable-speed blower quickly moves heat from the insert into your room.
• EPA-certified and Washington State-approved for clean and efficient operation.

Specifications

Clearance

• Reduced clearances may be available for A, B, C, and D dimensions by using an optional mantel and/or side shields. Consult with your Innovative Hearth Products dealer for the dimensions of the shields. Clearances can also be reduced for A, B, C and D dimensions per NFPA 211 - latest edition, Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances (in Canada CSA B365 - latest edition). See section on “Reduction of Appliance Clearance with Specified Forms of Protection.”
  ** Side view of optional mantel deflector shown.
  (1)Hearth extension reductions: 2” (51mm) reduction for 2” (51mm) raised hearth. (USA) 16” minimum hearth extension on all stoves as measured from the door opening of the unit. (Canada) 18”(450mm) minimum hearth extension on all stoves as measured from the door opening of the unit. Minimum distance of floor protection to the side = 8” (200mm). This is measured from the sides of the door opening in the USA and from the sides of the insert in Canada.
  (2) J = Maximum lintel depth without flue offset or smoke deflector.
  Note: Facing material that projects more than 3/4” (19mm) from the wall is considered a mantel or side wall.

Minimum Fireplace Size

Warranty

Innovative Hearth Products ("IHP") Limited Lifetime Warranty warrants your IronStrike® Brand Wood Burning Stove or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. The Product body, firebox and ceramic glass carry the Limited Lifetime Warranty. Ceramic glass carries the Limited Lifetime Warranty against thermal breakage only. After installation, if covered components manufactured by IHP are found to be defective in materials or workmanship during the Limited Lifetime Warranty period and while the Product remains at the site of the original installation, IHP will, at its option, repair or replace the covered components. If repair or replacement is not commercially practical, IHP will, at its option, refund the purchase price or wholesale price of the IHP product, whichever is applicable. IHP will also pay IHP prevailing labor rates, as determined in its sole discretion, incurred in repairing or replacing such components for up to five years. THERE ARE EXCLUSIONS AND LIMITATIONS to this Limited Lifetime Warranty as described herein.

Coverge Commencement Date: Warranty coverage begins on the date of purchase. In the case of new home construction, warranty coverage begins on the date of first occupancy of the dwelling or six months after the sale of the Product by an independent IHP dealer/distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following the date of product shipment from IHP, regardless of the installation or occupancy date.

About The Manufacturer

IronStrike is a trusted manufacturer of premium fireplace inserts and heating solutions, known for combining advanced heating technology with timeless design. Built with heavy-gauge steel, high-density firebrick, and innovative heat-exchange systems, IronStrike products are engineered to deliver exceptional warmth, efficiency, and long-lasting performance. From EPA-certified wood-burning inserts to highly efficient gas models, IronStrike focuses on clean operation, reliable craftsmanship, and user-friendly features that enhance comfort and convenience. With customizable design options and a commitment to quality, IronStrike continues to be a preferred choice for homeowners seeking dependable and efficient home heating solutions.
