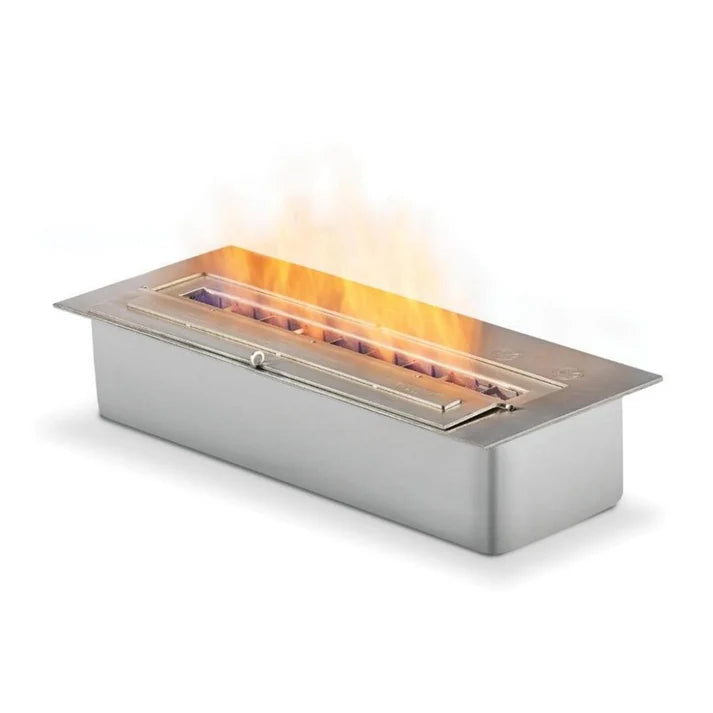

Mad Design Group - EcoSmart Fire XL500 20" Fireplace Burner

If you want real flames and warmth without the hassle, the EcoSmart Fire XL500 20" Fireplace Burner delivers. There’s no need for a chimney or complicated installation. Just set it up where you want—custom cabinetry, a bench, a stone wall, or a media unit—and you get instant atmosphere with a clean, modern look.

The XL500 is designed for both performance and style, so you can create a fireplace that matches your space. It works with almost any material, from concrete and marble to stainless steel, hardwood, or stone. The flame is steady and efficient, and the clean-burning bioethanol fuel gives you real orange flames without smoke, soot, or ash. There’s no need to worry about harmful by-products or complicated setups. You get the warmth and beauty of a real fire, without the usual maintenance.

The EcoSmart Fire XL500 does more than just provide a flame—it becomes the centerpiece of your space. Use it on its own or with a Flex Fireplace Insert for a clean, modern finish. It’s tested for safety and built to last. If you want a fireplace that’s easy to use, reliable, and delivers real warmth without the hassle, the XL500 stands out.

O-TL Listed in accordance with UL 1370.

What's Included:

• Bioethanol Burner
• 1.25 Gallon Jerry Can
• Bottle Adapter
• Fire Lighter
• Lighting Rod
• Butane

• XL Baffles

Not Included (Sold Separately):

• Plasma Fire Screen
• Twin Feet Fixings
• Black Glass Charcoal
• e-NRG Bioethanol Fuel

Features:

Design Versatility

Easily integrated into bespoke settings – from specially-made cabinetry, media units, walls, floating timber to stone benches and pillars.

Myriad Materials

Diverse range of materials can be used in your bespoke fire – think concrete and hard timber benches, marble recesses, stacked stone walls, stainless steel – even metal barrels cut in half!

Flame Regulation

Purpose-designed baffle inserts allow you to regulate and further stabilise the flame.

No Harmful By-products

e-NRG bioethanol produces a beautiful orange flame from start to finish without producing by-products such as smoke, soot or ash.

Award-winning

Awarded the 2009 Hearth & Home Vesta Award (USA).

Standalone or Integrated

Easily installed as a standalone ethanol burner in tailored setting or in conjunction with a zero-clearance Flex Fireplace Insert.

Tested World Wide

EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

Specifications:

Weight	14.33lb [6.5kg]
Application	Indoor & Outdoor
Material	Stainless Steel Grade 304, Toughened Glass
Color	Stainless Steel



Fuel Efficiency:

Volume Capacity	1.3 Gal [5 L]
Heats on Average	431ft2 [40m2]
Minimal Room	2825ft3 [80m3]
Thermal Output	12 MJ/h - 11430 BTU/h - 3.4 kW
Burn Time	10-13h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

Dimensions:

Width	9.8in [248mm]
Height	21.8in [553mm]
Depth	4.9in [124mm]

Technical Drawings:

Front View
Top View
Side View

Warranty :

Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase

Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

About The Manufacturer :

MAD Design Group is a global, family-owned manufacturer and lifestyle brand collective known for creating innovative, design-led solutions for residential and commercial spaces. As the parent company of EcoSmart Fire, launched in 2004, the company has spent over two decades pioneering eco-friendly fire technology while expanding into gas, electric, furniture, and heating products through brands like Blinde Design, Heatscope Heaters, and e-NRG bioethanol. With a presence in more than 75 countries, MAD Design Group focuses on combining modern design, advanced technology, and sustainability to deliver high-quality products that enhance contemporary living environments.
