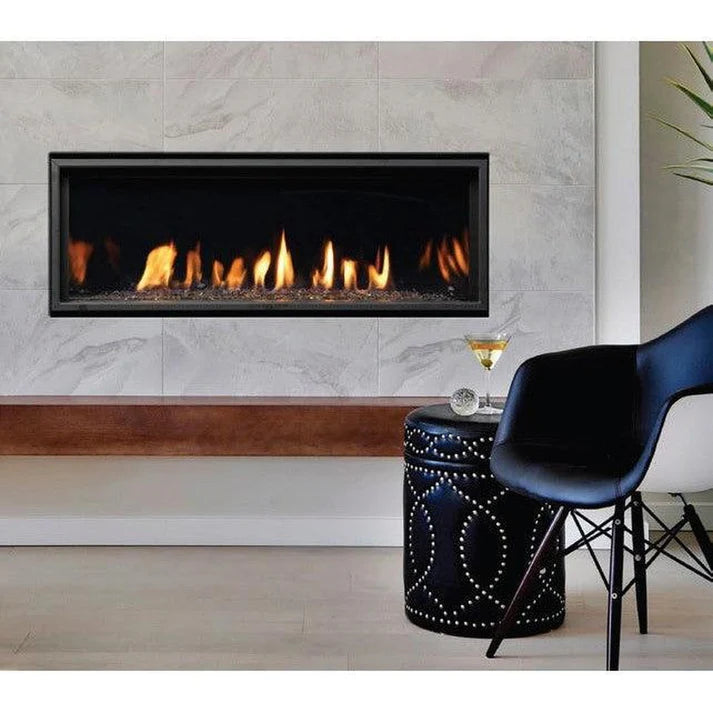

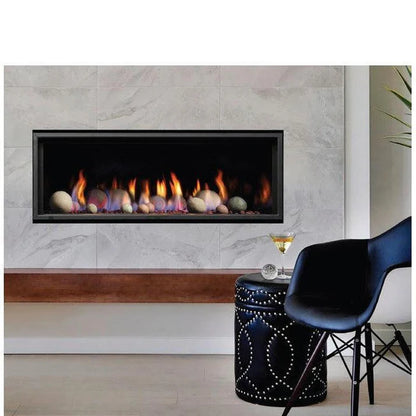

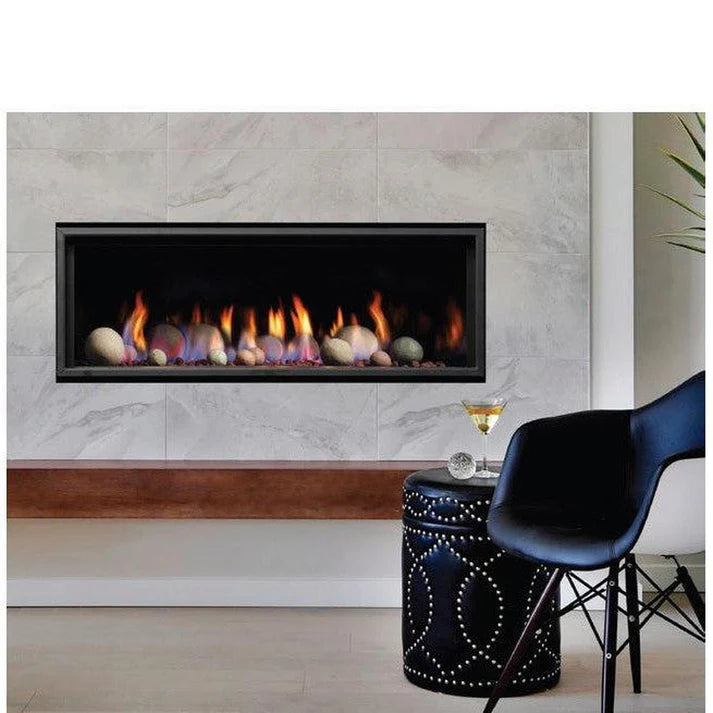

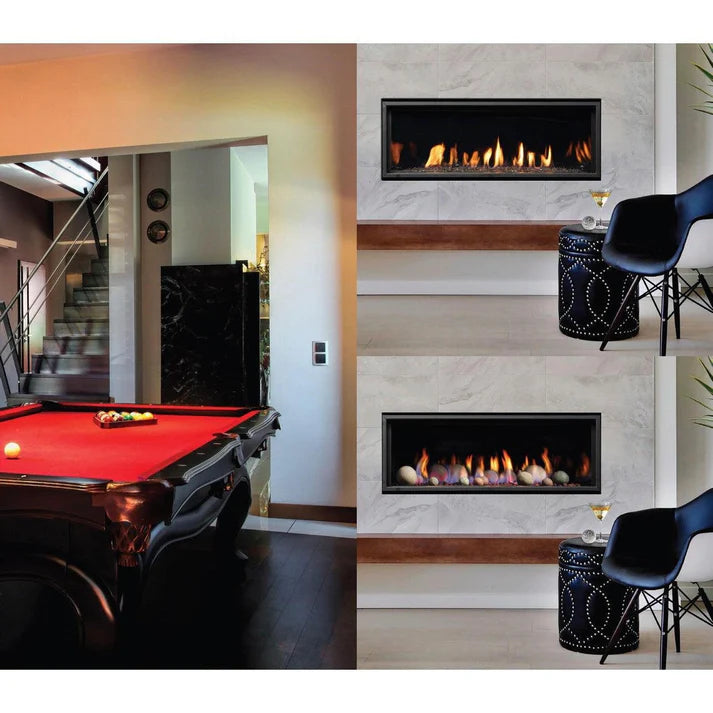

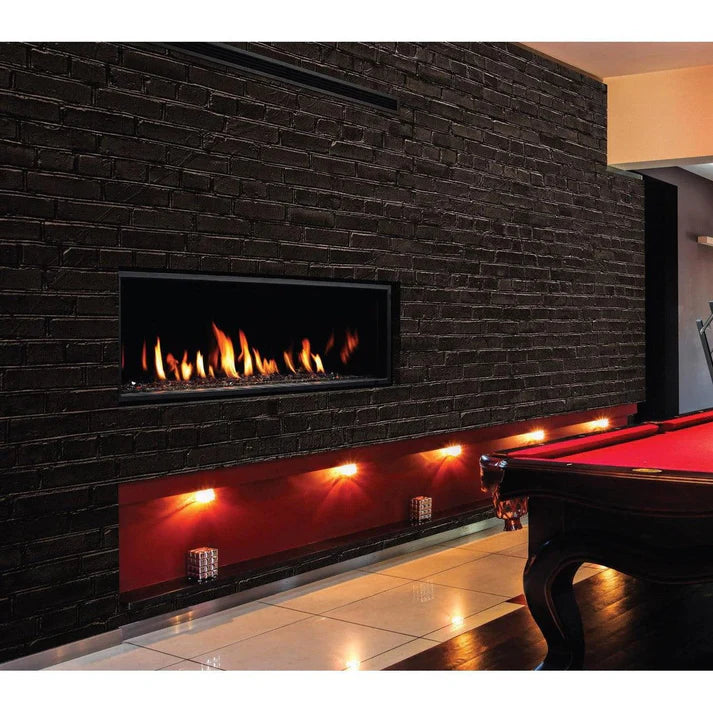

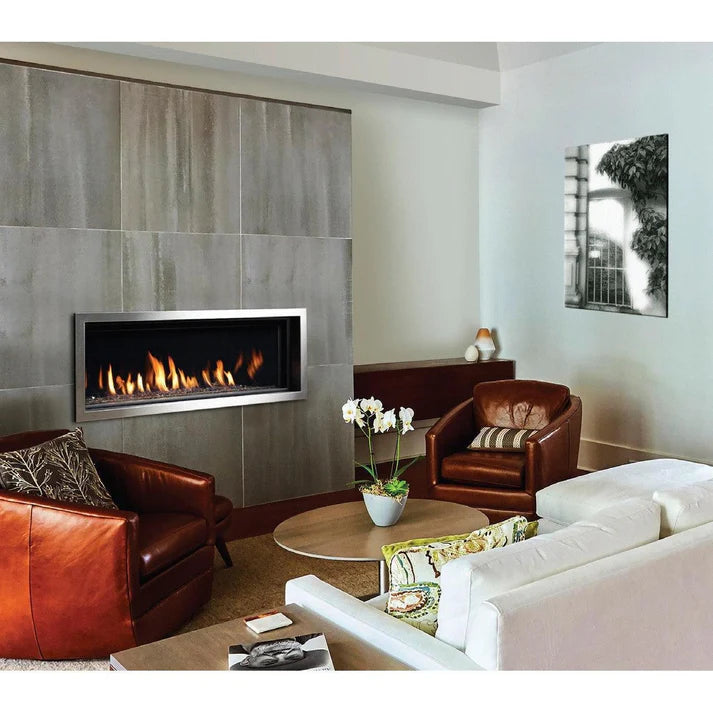

Kingsman Zero Clearance Natural Gas Direct Vent Linear Fireplace 47"

The right fireplace can change the feel of a room. The Kingsman Zero Clearance 47" Linear Fireplace stands out for its clean design and inviting flames. It makes any space warmer and more welcoming as soon as you turn it on. Installation is simple for professionals, and the zero clearance design means it fits easily into new builds or remodels. You get energy efficiency and a bold focal point that adds comfort to your home.

This fireplace is built for everyday life. You get a modern look and steady, energy-saving heat. Adjust the flames with a touch or remote to match your mood. Safety features like a shut-off and cool-touch glass give you peace of mind, while the design keeps the flames safely behind the glass. Even if the power goes out, you still get reliable warmth.

What matters most is how it feels to live with. The Kingsman 47" Linear Fireplace makes your home more comfortable and inviting, so people want to stay longer. It’s easy to use and simple to maintain. Just clean the glass regularly and have a pro check the burner and vent system. That way, you get safe, reliable warmth year after year.

Vented Chase Option :

The chase of the appliance may be vented to achieve Cool Touch Walls or reduced Mantel Clearances. The following options are available to vent the chase:

• The top of the chase can be left open.
• A grill can be installed on the front of the chase.
• If the chase bumps out into the room, side grills can be installed on each side of the chase.

Minimum enclosure height for a vented chase is measured from bottom of fireplace, ventilation of minimum free air opening is required. Choose between our Enclosure Grills (Front or Sides) or Custom Grill (if custom grills are used the louvers cannot slope) or adequate ventilation opening as stated in the manual. Grill or opening must meet minimum (as specified in the installation manual) of chase top/ceiling.

SPECIFICATIONS WITH OPENINGS (MIN. NO GRILLS)

ZCVRB47 – 105 sq/in.
ZCVRB60 – 200 sq/in.
ZCVRB72 – 285 sq/in.

Min. Enclosure Height
ZCVRB47 – 70”
ZCVRB60 – 76”
ZCVRB72 – 79”

Min. Opening Below Ceiling
ZCVRB47 – 1-1/4”
ZCVRB60 – 1-7/8”
ZCVRB72 – 2-3/8”

SPECIFICATIONS WITH GRILLS (MIN. AIR FREE OPENINGS)

ZCVRB47 – 105 sq/in.
ZCVRB60 – 220 sq/in.
ZCVRB72 – 285 sq/in.

Min. Enclosure Height
ZCVRB47 – 70”
ZCVRB60 – 76”
ZCVRB60 – 79”

Grill Opening (Max. Distance from top of Ceiling)
ZCVRB47 – 2”
ZCVRB60 – 3/4”
ZCVRB60 – 3/4”

What's Included :

• ZCVRB47 Linear Fireplace
• SIT Valve with Hi/Lo Flame Adjustment
• Bronze Glass Media
• Tempered Glass
• Linear Burner
• Safety Screen
• 4/7" Top Flue

Not Included (Sold Separately)

• Grills for Ventilation
• Surround Trim Kit
• Porcelain Reflective Liner
• Decorative Cannonballs
• Fan Kit With Variable Speed
• Universal Light Kit
• Tile Lip Kit
• Gas Conversion Kit
• Thermostats and Remote Controls

Features :

• Tempered Glass
• Safety Screen Barrier
• Decorative Bronze Glass
• Mobile Home, Bedroom and Bed Sitting Room approved
• Hi/Low Millivolt or IPI valve system will operate during power failures

Product Specification :

Dimensions :

Warranty :

• This Limited Lifetime Warranty applies only while the unit remains at the site of the original installation and only if the unit is installed inside the continental United States, Alaska, Hawaii, and Canada.
• The warranty applies only if the unit is installed and operated in accordance with the printed instructions and in compliance with applicable installation and building codes and good trade practices.

About the Manufacturer :

Kingsman Industries is a Canadian-based manufacturer specializing in high-quality gas fireplaces, inserts, and freestanding stoves, with a legacy dating back to 1976. Founded by Russell Reyher, the company has built a strong reputation for combining innovative engineering, reliable performance, and strict safety standards in its products. Kingsman focuses on delivering efficient heating solutions with modern designs, catering to both residential and commercial markets. With decades of experience and an extensive dealer network across North America, the brand is recognized for its durability, craftsmanship, and commitment to customer satisfaction.
